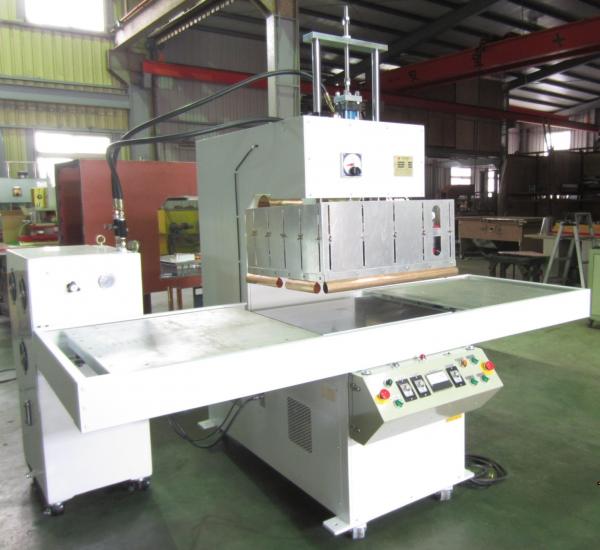

High Frequency & High Pressure Embossing/Welding Machine

High Frequency & High Pressure Embossing/Welding Machine

PW-802CAS+H-HY

High Frequency & High Pressure Embossing/Welding Machine

PW-802C-HY

Product ID: PW-502CMS/HY, PW-502CAS/HY, PW-602CMS/HY, PW-602CAS/HY, PW-802CMS/HY, PW-802CAS/HY, PW-1002CMS/HY, PW-1002CAS/HY

The high frequency plastic welding machine with high pressure installation for materials of thickness PVC, TPU, PU, leather's special process of brand, convex, concave surface.
Application
- Trade mark labels, Footwear, Clothes, Belt, Camera Bag, Handbags...etc.

Specifications:

See more complete detail

Model	PW-602C/CAS/CMS-HY	PW-802C/CAS/CMS-HY	PW-1005C/CAS/CMS-HY	PW-1505C/CAS/CMS-HY	PW-401C/CAS/CMS-HY
Operation	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
H.F. Output	6KW	8KW	10KW	10KW	4KW
Max. Press	2,000Kgs / CM²	2,000Kgs / CM²	5,000Kgs / CM²	5,000Kgs / CM²	1,000Kgs / CM²
Frequency	27.12Mhz	27.12Mhz	27.12Mhz	27.12Mhz	40.68Mhz
Oscillation Tube	7T69RB CANON JAPAN	7T69RB CANON JAPAN	E3069 CANON JAPAN	8T85RB CANON JAPAN	E3062 CANON JAPAN
Voltage	to be arranged	to be arranged	to be arranged	To be arranged	to be arranged
Press Stroke	250mm	250mm	250mm	250mm	100mm
Upper plate	To be arranged	to be arranged	to be arranged	To be arranged	to be arranged
Lower Plate	to be arranged	to be arranged	to be arranged	To be arranged	to be arranged
ARC Control	High Sensitive	High Sensitive	High Sensitive	High Sensitive	High Sensitive
Slide board	CAS: Automatic CMS: Manual	CAS: Automatic CMS: Manual	CAS:Automatic CMS:Manual	CAS:Automatic CMS:Manual	CAS:Automatic CMS:Manual
The H.F. Power & Max. press can be change for processing asked
