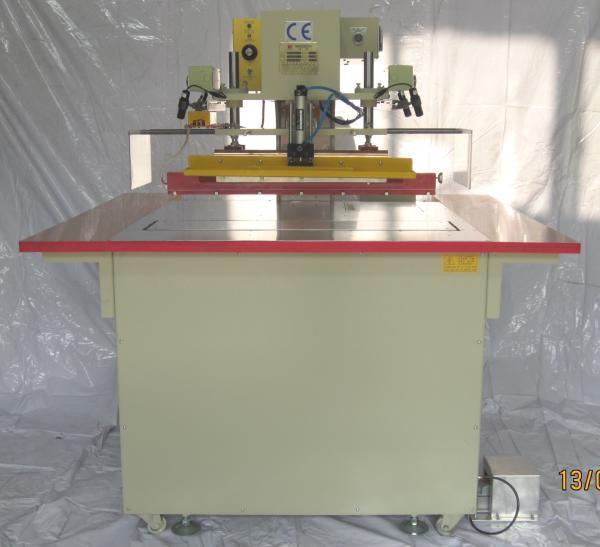

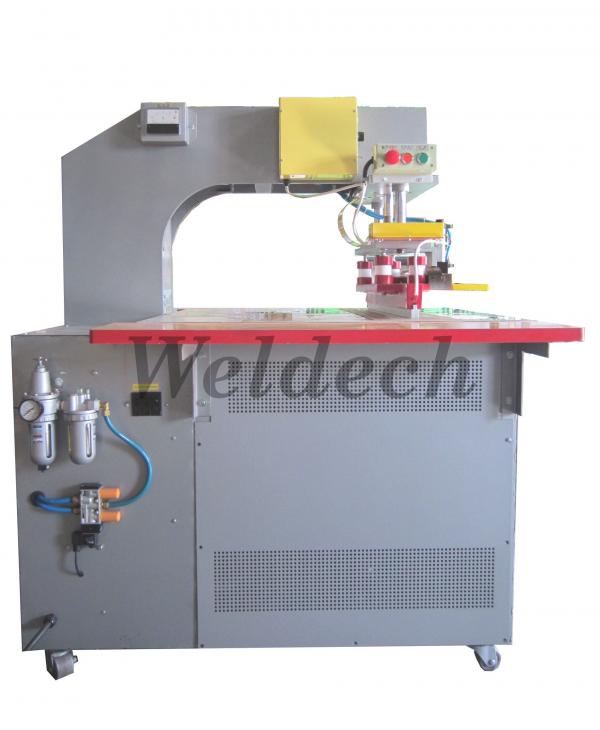

[CE] High Frequency Canvas Welding Machines

[CE] High Frequency Canvas Welding Machines

[CE] High Frequency Canvas Welding Machines

Product ID: WE-70B, WE-100B, WE-120B

APPLICATIONS
- To design a BIG SPACE on behind electrode, there has 700mm are free space can use
- Pure PVC or soft PVC that contain over 30% PVC and canvas these can be processed.

Features:

To design BIG SPACE on behind electrode, there have 700mm are free space can use.

See more complete detail

Model	WE-70B	WE-100B	WE-120B
Type of Operation	Pneumatic
H.F. Out-Put Power	7 KW	10 KW	12KW
Oscillation Tube Canon Japan	7T69RB	E3069	E3130
Frequency	27.12MHZ
Distance behind electrode	700mm
Voltage	Voltage to be arranged at instruction
Max Gap	70mm
Press Stoke	70mm
Max Pressure	730 Kgs/cm2
Max Welding Size	19 x 820mm	19 x 860mm	19x950mm
Size of Lower Electrode	200 x 1000mm
Dimensions of Machine(cm)	(W)153 x (D)132 x (H)160
Net Weight	650Kgs	670Kgs	700kgs
Gross Weight	730kgs	750kgs	780kgs
Size of wooden case (cm)	138x157x188

Order Information:

Minimum Order: Negotiable
Branded Product, Buyer's Label Offered
