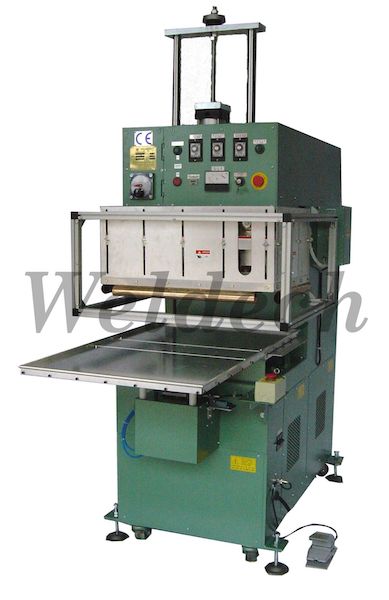

[CE] High Frequency Blister Packing Machine(PW-601CMTR+H, PW-801CMTR+H, PW-1001CMTR+H, PW-401CMTR+H, PW-501CMTR+H)

[CE] High Frequency Blister Packing Machine

Model	PW-401CMTR+H	PW-501CMTR+H	PW-601CMTR+H	PW-801CMTR+H	PW-1001CMTR+H
H.F. Out-put Power	4KW	5KW	6 KW	8 KW	10 KW
Oscillation Frequency	27.12 MHZ	27.12 MHZ	27.12 MHZ	27.12 MHZ	27.12MHZ
Power Supply	AC220/380/400 /415/440V 3Phase, voltage to be arranged at instruction	AC220/380/400 /415/440V 3phase, voltage to be arranged at instruction	AC220/380/400 /415/440V 3Dia. Voltage to be arranged at instruction	AC220/380/400 /415/440V 3Dia. Voltage to be arranged at instruction	AC220/380/400 /415/440V 3Dia. Voltage to be arranged at instruction
Oscillation Tube	E3062	7T85RB	7T69RB	7T69RB	E3069
Rectifier	Silicon Rectifier	Silicon Rectifier	Silicon Rectifier	Silicon Rectifier	Silicon Rectifier
Arc Suppressor	Highly Sensitive Sparklet Preventor	Highly Sensitive Sparklet Preventor	Highly Sensitive Sparklet Preventor	Highly Sensitive Sparklet Preventor	Highly Sensitive Sparklet Preventor
Upper Plate (mm)	200 x 300	200 x 300	350 x 550	350 x 550	350 x 550
Lower Plate (mm)	300 x 400	300 x 400	400 x 600	400 x 600	400 x 600
Press Stroke (mm)	100mm	100mm	150mm	150mm	150mm
Slide Table Type	Manual Turntable	Manual Turntable	Manual Turntable	Manual Turntable	Manual Turntable
Welding Head Operation	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
